Product Details

Product Details for Image II, Vertical Seam, Wakefield Bridge and GAF Timberline HD Asphalt Shingles:

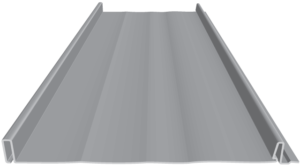

Image II

Panel Coverage: 12″, 16″

Rib Height: 1″

Standard Gauge(s): 26 ga.

Optional Gauge(s): 24 ga.

Like all Standing Seam Roof panels, Image II™ delivers a clean, linear elegance paired with unmatched quality for a dependable, long-lasting and beautiful roof. As a direct concealed-fastened option, Image II™ provides the benefit of the same great look at a more economical price.

Available Substrate(s): Solid Substrate

Fastener(s): Standing Seam RoofConcealed Fastened

Standard Finish(es): PVDF (Kynar 500®)MS Colorfast45®Acrylic Coated Galvalume®

Minimum Slope Requirement: 3:12

Other Notes:

  • Applies over solid substrate with 30# felt underlayment

Vertical Seam

Panel Coverage: 12″, 16″, 18″

Rib Height: 1-3/4″

Standard Gauge(s): 24 ga.26 ga.

Optional Gauge(s): 22 ga.

As a Structural Standing Seam panel, Vertical Seam delivers a clean, linear elegance paired with unmatched quality for a dependable, long-lasting, and beautiful roof. Structural Standing Seam roof systems are ideal for lower sloping and longer spanning roofs, or where extreme temperature variations exist.

Available Substrate(s): Open FramingSolid Substrate

Fastener(s): Standing Seam RoofConcealed Fastened

Standard Finish(es): PVDF (Kynar 500®)MS Colorfast45®Acrylic Coated Galvalume®

Minimum Slope Requirement: 3:12OF/1:12SS*

3:12 over Open Framing 1:12 over Solid Substrate

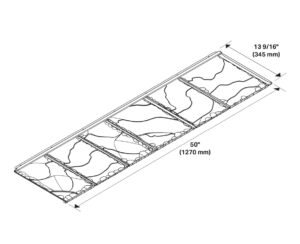

Wakefield Bridge- Steel Shingle

Related image

Wakefield Bridge Steel Shingles are designed as an alternative to common ashphalt shingles but with the toughness and long-lasting qualities of high-strength steel roofing panels. It features a stucco-embossed finish for greater strength and a distinguished look. They are protected by our proven oven-baked PVDF paint system with Kynar 500 resin. Available in 16 colours.

GAF Timberline HD- Asphalt Shingle

More homeowners and professional installers in North America rely on Timberline HD® Shingles than any other brand. They offer just the right combination of beauty, performance, and reliability in a genuine wood-shake look — and can help improve your home’s resale value. When you install Timberline HD® Shingles with Advanced Protection® Shingle Technology, you’re getting rugged, dependable performance. And you’ll not only protect your most valuable asset — you’ll also beautify your home for years to come.

  • Great Value:  Architecturally stylish but practically priced — with a Lifetime ltd. warranty.
  • Dimensional Look:  Features GAF proprietary color blends and enhanced shadow effect for a genuine wood-shake look.
  • Highest Roofing Fire Rating:  UL Class A, Listed to ANSI/UL 790.
  • High Performance:  Designed with Advanced Technology-Shingle Protection, which reduces the use of natural resources while providing excellent protection for your home.
  • Stays In Place:  DuraGrip™ Adhesive seals each shingle tightly and reduces the risk of shingle blow-off. Shingles warranted to withstand winds up to 130 mph (209 km/h).
  • Peace Of Mind:  Lifetime ltd. transferable warranty with Smart ChoiceProtection (non-prorated material and installation labor coverage) for the first ten years.
  • StainGuard® Protection:  Helps ensure the beauty of your roof against unsightly blue-green algae.
  • Trusted:  Timberline HD® Shingles have earned the Good Housekeeping Seal (U.S. only).
